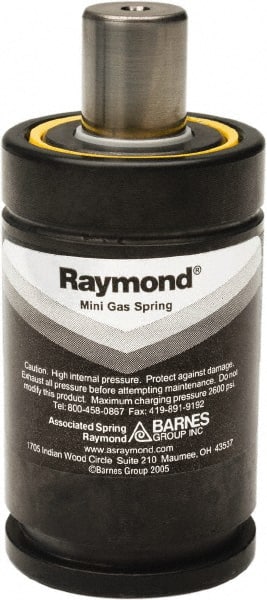

Associated Spring Raymond - 11mm Rod Diam, 19mm Diam, 15mm Max Stroke, Nitrogen Gas Spring Cylinder - 45mm Body Length, 60mm OAL, 630 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69129955
Brand: Associated Spring Raymond
Model #: X170-015
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 19 |
| Body Length (mm) | 45 |
| Body Length (Decimal Inch) | 1.7717 |
| Diameter (Decimal Inch) | 0.7480 |
| Spring Force Initial (N) | 1699 |
| Spring Force Initial (lbf) | 382 |
| Spring Force Full Stroke (N) | 2802 |
| Spring Force Full Stroke (lbf) | 630 |
| Rod Diameter (mm) | 11 |
| Rod Diameter (Decimal Inch) | 0.4331 |
| Overall Length (mm) | 60 |
| Overall Length (Decimal Inch) | 2.3622 |
| Maximum Stroke (mm) | 15 |
| Maximum Stroke (Decimal Inch) | 0.5906 |
