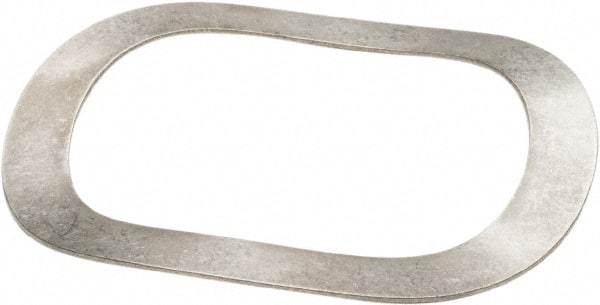

Associated Spring Raymond - 122mm ID x 156.79mm OD, Grade 1074 High Carbon Steel Triple Wave Washer - 1.47mm Thick, 11.76mm Overall Height, 6.17mm Deflection, 196 Lb at Deflection
Item #: 69130037
Brand: Associated Spring Raymond
Model #: W6173058
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength. It is commonly used on wood, ferrous and non-ferrous metals.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| System of Measurement | Inch |
| Inside Diameter (mm) | 122.00 |
| Inside Diameter (Decimal Inch) | 4.803 |
| Outside Diameter (mm) | 156.79 |
| Outside Diameter (Decimal Inch) | 6.173 |
| Material | High Carbon Steel |
| Material Grade | 1074 |
| Overall Height (Decimal Inch) | 0.463 |
| Overall Height (mm) | 11.76 |
| Thickness (Decimal Inch) | 0.058 |
| Thickness (mm) | 1.47 |
| Deflection (Decimal Inch) | 0.2430 |
| Load at Deflection (Lb.) | 196.00 |
| Deflection (mm) | 6.17 |
| Load at Deflection (N) | 872 |
