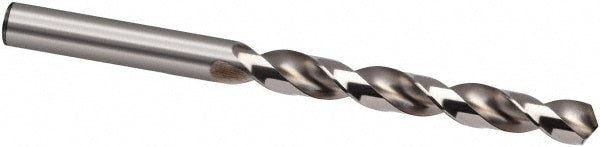

Jobber Drill: 11/32" Dia, 130 deg Point, High Speed Steel
Item #: 69330116
Brand: Guhring
Model #: 9002070087300
Product Specifications
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5781 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Spiral Type | Regular |
| Flute Length (mm) | 81.00 |
| Flute Length (Decimal Inch) | 3.1890 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.73 |
| Maximum Drilling Depth (Decimal Inch) | 2.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5781 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Spiral Type | Regular |
| Flute Length (mm) | 81.00 |
| Flute Length (Decimal Inch) | 3.1890 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.73 |
| Maximum Drilling Depth (Decimal Inch) | 2.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69330116 |
| Mfr Part # | 9002070087300 |
| Country of Origin Country of Origin is subject to change | Germany |
