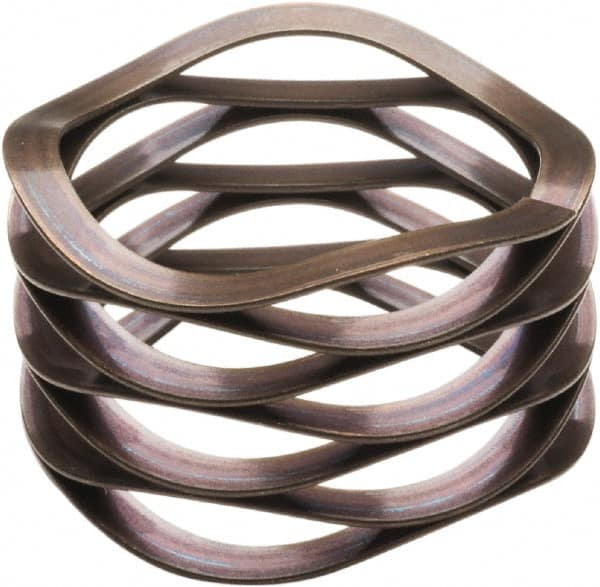

Associated Spring Raymond - 18.54mm ID x 25.4mm OD, Grade 17-7 PH Stainless Steel Multiwave Disc Spring - 0.25mm Thick, 14.81mm Overall Height, 9.7mm Deflection, 12 Lb at Deflection
Item #: 69135382
Brand: Associated Spring Raymond
Model #: MW1000058312S
Exact Tooling IR#: 04
Features and Benefits
Multi-wave disc springs are used for light to medium applications and where space is a concern. The wound material takes up less space that round wire and are a good alternative to compression springs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Multiwave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (mm) | 18.54 |
| Inside Diameter (Decimal Inch) | 0.7300 |
| Outside Diameter (mm) | 25.40 |
| Outside Diameter (Decimal Inch) | 1.0000 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Overall Height (Decimal Inch) | 0.5830 |
| Overall Height (mm) | 14.81 |
| Thickness (Decimal Inch) | 0.0100 |
| Thickness (mm) | 0.25 |
| Deflection (Decimal Inch) | 0.3820 |
| Load at Deflection (Lb.) | 12.00 |
| Deflection (mm) | 9.70 |
| Load at Deflection (N) | 53.40000153 |
