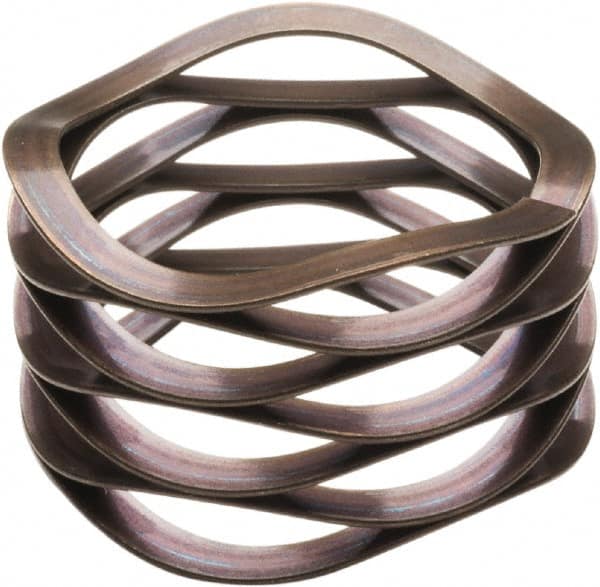

Associated Spring Raymond - 9.53mm ID x 14.27mm OD, Grade 17-7 PH Stainless Steel Multiwave Disc Spring - 0.3mm Thick, 11.56mm Overall Height, 6.25mm Deflection, 11 Lb at Deflection
Item #: 69135499
Brand: Associated Spring Raymond
Model #: MW0562045511S
Exact Tooling IR#: 04
Features and Benefits
Multi-wave disc springs are used for light to medium applications and where space is a concern. The wound material takes up less space that round wire and are a good alternative to compression springs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Multiwave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (mm) | 9.53 |
| Inside Diameter (Decimal Inch) | 0.3750 |
| Outside Diameter (mm) | 14.27 |
| Outside Diameter (Decimal Inch) | 0.5620 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Overall Height (Decimal Inch) | 0.4550 |
| Overall Height (mm) | 11.56 |
| Thickness (Decimal Inch) | 0.0120 |
| Thickness (mm) | 0.30 |
| Deflection (Decimal Inch) | 0.2460 |
| Load at Deflection (Lb.) | 11.00 |
| Deflection (mm) | 6-1/4 |
| Load at Deflection (N) | 48.90000153 |
