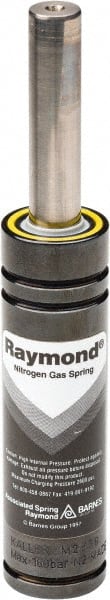

Associated Spring Raymond - 12mm Rod Diam, 24.9mm Diam, 10mm Max Stroke, Nitrogen Gas Spring Cylinder - 52mm Body Length, 62mm OAL, 517 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69135754
Brand: Associated Spring Raymond
Model #: M2-010-RE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 24.90 |
| Body Length (mm) | 52 |
| Body Length (Decimal Inch) | 2.0472 |
| Diameter (Decimal Inch) | 0.9803 |
| Spring Force Initial (N) | 1512 |
| Spring Force Initial (lbf) | 340 |
| Spring Force Full Stroke (N) | 2300 |
| Spring Force Full Stroke (lbf) | 517 |
| Rod Diameter (mm) | 12 |
| Rod Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 62 |
| Overall Length (Decimal Inch) | 2.4409 |
| Maximum Stroke (mm) | 10 |
| Maximum Stroke (Decimal Inch) | 0.3937 |
