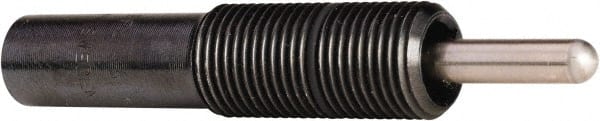

Associated Spring Raymond - 12mm Rod Diam, 20mm Max Stroke, Nitrogen Gas Spring Cylinder - 65mm Body Length, 85mm OAL, 340 Lb Full Stroke Spring Force, 87 psi Initial Charge
Item #: 69139228
Brand: Associated Spring Raymond
Model #: EP2 24-020-RE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Initial Charge Pressure (psi) | 87 |
| Initial Charge Pressure (bar) | 6 |
| Body Length (mm) | 65 |
| Body Length (Decimal Inch) | 2.5591 |
| Spring Force Initial (N) | 850 |
| Spring Force Initial (lbf) | 191 |
| Spring Force Full Stroke (N) | 1512 |
| Spring Force Full Stroke (lbf) | 340 |
| Rod Diameter (mm) | 12 |
| Rod Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 85 |
| Overall Length (Decimal Inch) | 3.3465 |
| Maximum Stroke (mm) | 20 |
| Maximum Stroke (Decimal Inch) | 0.7874 |
