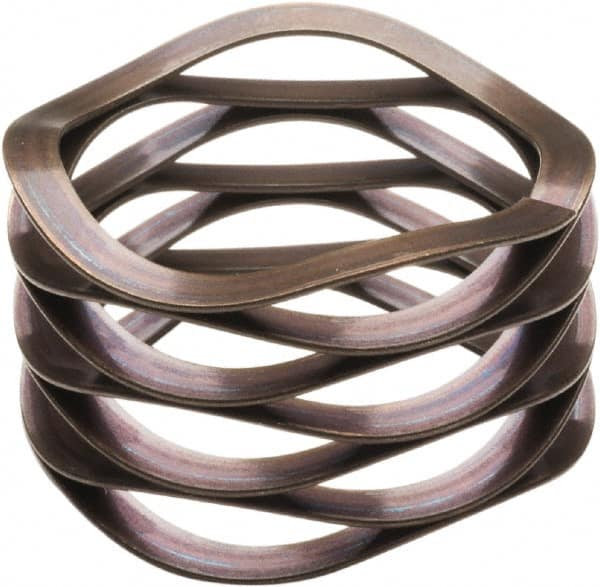

Associated Spring Raymond - 6.35mm ID x 9.53mm OD, Grade 17-7 PH Stainless Steel Multiwave Disc Spring - 0.28mm Thick, 11.43mm Overall Height, 4.78mm Deflection, 7 Lb at Deflection
Item #: 69147999
Brand: Associated Spring Raymond
Model #: MW0375045007S
Exact Tooling IR#: 04
Features and Benefits
Multi-wave disc springs are used for light to medium applications and where space is a concern. The wound material takes up less space that round wire and are a good alternative to compression springs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Multiwave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (mm) | 6.35 |
| Inside Diameter (Decimal Inch) | 0.2500 |
| Outside Diameter (mm) | 9.53 |
| Outside Diameter (Decimal Inch) | 0.3750 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Overall Height (Decimal Inch) | 0.4500 |
| Overall Height (mm) | 11.43 |
| Thickness (Decimal Inch) | 0.0110 |
| Thickness (mm) | 0.28 |
| Deflection (Decimal Inch) | 0.1880 |
| Load at Deflection (Lb.) | 7.00 |
| Deflection (mm) | 4.78 |
| Load at Deflection (N) | 31.10000038 |
