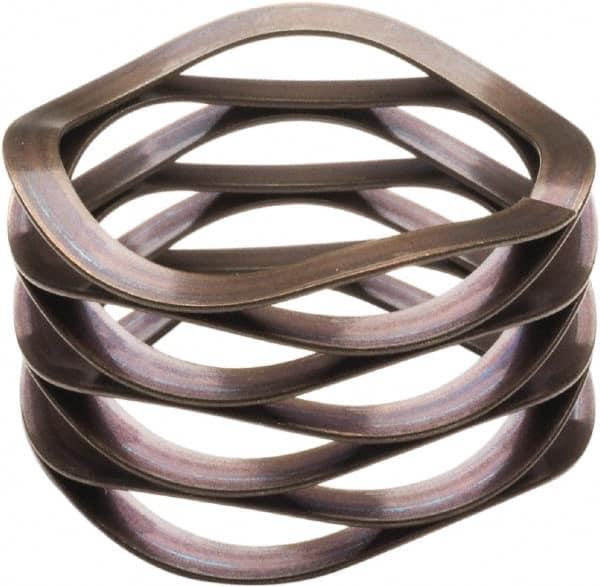

Associated Spring Raymond - 7.14mm ID x 11.1mm OD, Grade 17-7 PH Stainless Steel Multiwave Disc Spring - 0.28mm Thick, 6.99mm Overall Height, 3.38mm Deflection, 8 Lb at Deflection
Item #: 69148021
Brand: Associated Spring Raymond
Model #: MW0437027508S
Exact Tooling IR#: 04
Features and Benefits
Multi-wave disc springs are used for light to medium applications and where space is a concern. The wound material takes up less space that round wire and are a good alternative to compression springs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Multiwave Disc Spring |
| System of Measurement | Inch |
| Inside Diameter (mm) | 7.14 |
| Inside Diameter (Decimal Inch) | 0.2810 |
| Outside Diameter (mm) | 11.10 |
| Outside Diameter (Decimal Inch) | 0.4370 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Overall Height (Decimal Inch) | 0.2750 |
| Overall Height (mm) | 6.99 |
| Thickness (Decimal Inch) | 0.0110 |
| Thickness (mm) | 0.28 |
| Deflection (Decimal Inch) | 0.1330 |
| Load at Deflection (Lb.) | 8.00 |
| Deflection (mm) | 3.38 |
| Load at Deflection (N) | 35.59999847 |
