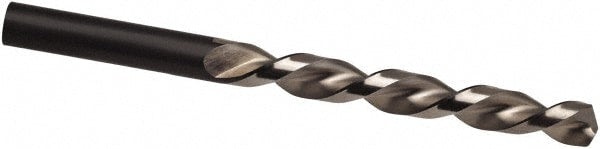

Jobber Drill: 2.25 mm Dia, 130 deg Point, High Speed Steel
Item #: 69333730
Brand: Guhring
Model #: 9005500022500
Product Specifications
| Drill Bit Size (mm) | 2.25 |
| Drill Bit Size (Decimal Inch) | 0.0886 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Overall Length (mm) | 53.00 |
| Overall Length (Decimal Inch) | 2.0866 |
| Spiral Type | Regular |
| Flute Length (mm) | 27.00 |
| Flute Length (Decimal Inch) | 1.0630 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 2.25 |
| Maximum Drilling Depth (Decimal Inch) | 4.5000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 2.00 - 3.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 2.25 |
| Drill Bit Size (Decimal Inch) | 0.0886 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Overall Length (mm) | 53.00 |
| Overall Length (Decimal Inch) | 2.0866 |
| Spiral Type | Regular |
| Flute Length (mm) | 27.00 |
| Flute Length (Decimal Inch) | 1.0630 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 2.25 |
| Maximum Drilling Depth (Decimal Inch) | 4.5000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 2.00 - 3.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69333730 |
| Mfr Part # | 9005500022500 |
| Country of Origin Country of Origin is subject to change | Germany |
