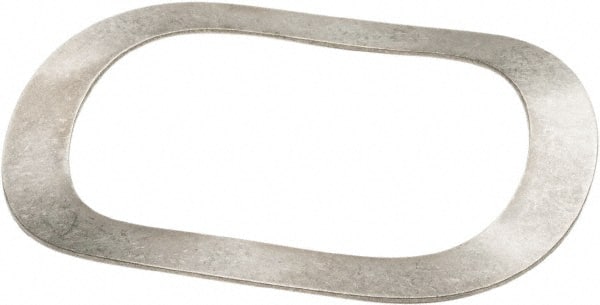

Associated Spring Raymond - 66.12mm ID x 84.53mm OD, Grade 1074 High Carbon Steel Triple Wave Washer - 0.91mm Thick, 5.77mm Overall Height, 2.92mm Deflection, 74 Lb at Deflection
Item #: 69159598
Brand: Associated Spring Raymond
Model #: W3328036
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength. It is commonly used on wood, ferrous and non-ferrous metals.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| System of Measurement | Inch |
| Inside Diameter (mm) | 66.12 |
| Inside Diameter (Decimal Inch) | 2.603 |
| Outside Diameter (mm) | 84.53 |
| Outside Diameter (Decimal Inch) | 3.328 |
| Material | High Carbon Steel |
| Material Grade | 1074 |
| Overall Height (Decimal Inch) | 0.227 |
| Overall Height (mm) | 5.77 |
| Thickness (Decimal Inch) | 0.036 |
| Thickness (mm) | 0.91 |
| Deflection (Decimal Inch) | 0.1150 |
| Load at Deflection (Lb.) | 74.00 |
| Deflection (mm) | 2.92 |
| Load at Deflection (N) | 329 |
