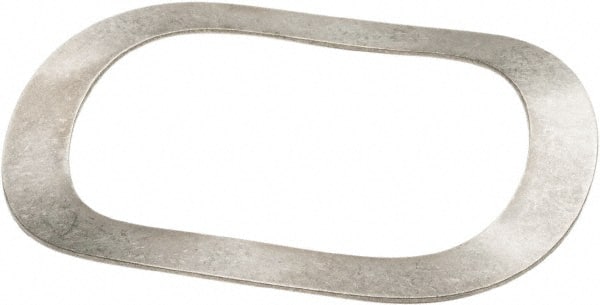

Associated Spring Raymond - 91.74mm ID x 117.53mm OD, Grade 1074 High Carbon Steel Triple Wave Washer - 1.19mm Thick, 8.48mm Overall Height, 4.37mm Deflection, 130 Lb at Deflection
Item #: 69159614
Brand: Associated Spring Raymond
Model #: W4627047
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength. It is commonly used on wood, ferrous and non-ferrous metals.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| System of Measurement | Inch |
| Inside Diameter (mm) | 91.74 |
| Inside Diameter (Decimal Inch) | 3.612 |
| Outside Diameter (mm) | 117.53 |
| Outside Diameter (Decimal Inch) | 4.627 |
| Material | High Carbon Steel |
| Material Grade | 1074 |
| Overall Height (Decimal Inch) | 0.334 |
| Overall Height (mm) | 8.48 |
| Thickness (Decimal Inch) | 0.047 |
| Thickness (mm) | 1.19 |
| Deflection (Decimal Inch) | 0.1720 |
| Load at Deflection (Lb.) | 130.00 |
| Deflection (mm) | 4.37 |
| Load at Deflection (N) | 578 |
