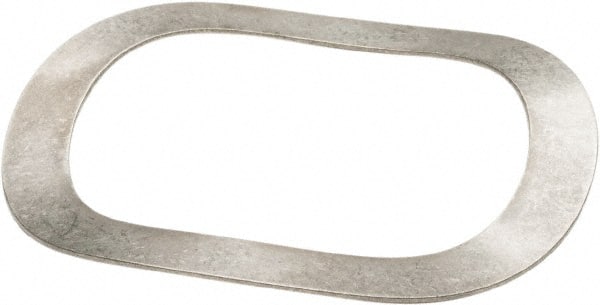

Associated Spring Raymond - 115.06mm ID x 147.75mm OD, Grade 1074 High Carbon Steel Triple Wave Washer - 1.4mm Thick, 11.18mm Overall Height, 5.87mm Deflection, 178 Lb at Deflection
Item #: 69159630
Brand: Associated Spring Raymond
Model #: W5817055
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength. It is commonly used on wood, ferrous and non-ferrous metals.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| System of Measurement | Inch |
| Inside Diameter (mm) | 115.06 |
| Inside Diameter (Decimal Inch) | 4.530 |
| Outside Diameter (mm) | 147.75 |
| Outside Diameter (Decimal Inch) | 5.817 |
| Material | High Carbon Steel |
| Material Grade | 1074 |
| Overall Height (Decimal Inch) | 0.440 |
| Overall Height (mm) | 11.18 |
| Thickness (Decimal Inch) | 0.055 |
| Thickness (mm) | 1.40 |
| Deflection (Decimal Inch) | 0.2310 |
| Load at Deflection (Lb.) | 178.00 |
| Deflection (mm) | 5.87 |
| Load at Deflection (N) | 792 |
