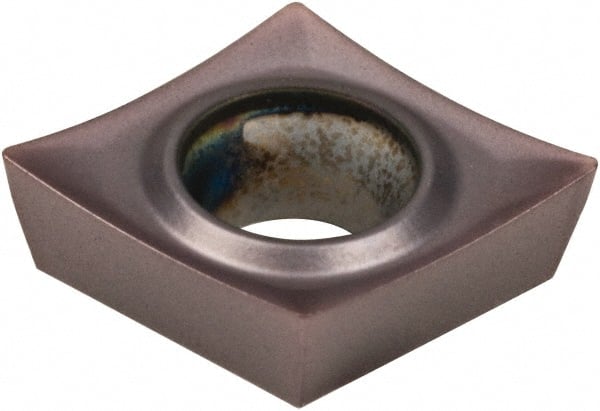

Kennametal - CPGT32.51 HP Grade KCU10 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 69258895
Brand: Kennametal
Model #: 4045223
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPGT |
| Insert Size | 32.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | HP |
| Hole Diameter (Decimal Inch) | 0.4000 |
| ISO Number | CPGT09T304HP |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPGT3251HP |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
