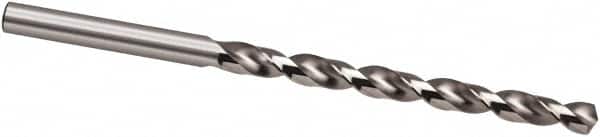

Taper Length Drill Bit: 0.0984″ Dia, 130 ° Bright/Uncoated, RH Cut, Spiral Flute, Straight Shank, Series 219
Item #: 69327294
Brand: Guhring
Model #: 9002190025000
Product Specifications
| Drill Bit Size (mm) | 2.50 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Flute Length (mm) | 62.00 |
| Shank Type | Straight |
| Point Type | Cone Relief |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 95.00 |
| Shank Diameter (mm) | 2.50 |
| Drill Bit Size (Decimal Inch) | 0.0984 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 219 |
| Flute Length X Diameter Ratio | 10xD |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Spiral Type | Fast |
| Material Grade | M-2 |
