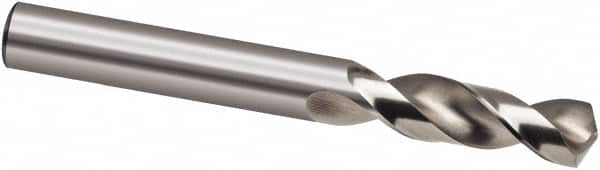

Guhring - 6.1mm 130° Spiral Flute High Speed Steel Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 31mm Flute Length, 70mm OAL, Cone Relief Point, Straight Shank
Item #: 69331445
Brand: Guhring
Model #: 9002250061000
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2402 |
| Drill Bit Size (mm) | 6.10 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 31.00 |
| Overall Length (mm) | 70.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Cone Relief |
| Shank Diameter (mm) | 6.10 |
| Shank Diameter (Decimal Inch) | 0.2402 |
| Specification Designation | DIN |
| Spiral Type | Fast Spiral |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | General Purpose |
| Material Grade | M2 |
| Series/List | 225 |
