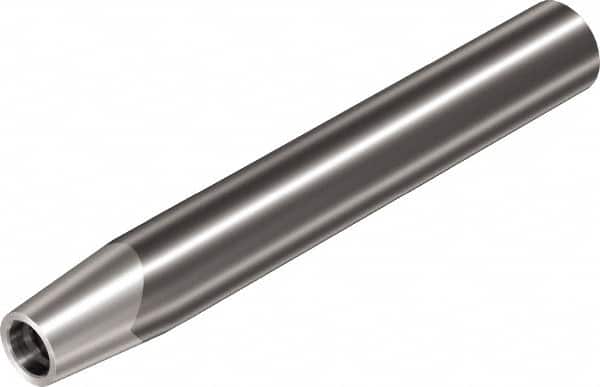

Sandvik Coromant - CoroMill 316 5/8" Straight Shank Milling Tip Insert Holder & Shank - 6-1/2" Projection, 0.483" Neck Diam, 0.4803" Nose Diam, 6" OAL, Carbide AExx-Axx..CE Tool Holder
Item #: 69358158
Brand: Sandvik Coromant
Model #: 5782665
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Projection (Inch) | 6-1/2 |
| Projection (Decimal Inch) | 6.5000 |
| Neck Diameter (Decimal Inch) | 0.4803 |
| Nose Diameter (Decimal Inch) | 0.4803 |
| Toolholder Material | Carbide |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.5000 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 0.8268 |
| Maximum Diameter (Decimal Inch) | 0.4803 |
| Shank Material | Carbide |
| Toolholder Style | AExx-Axx..CE |
