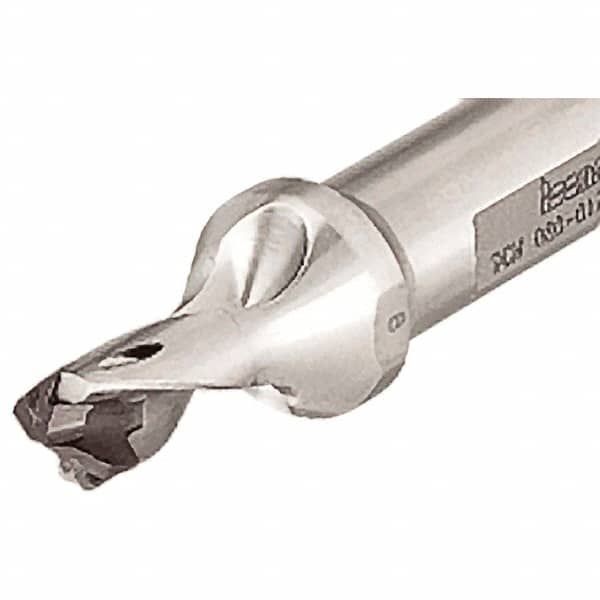

Iscar - 1.181 to 1.216" Diam, 1.5xD, 1.99" Max Drill Depth, 1-1/4" Shank Diam, 6" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICM, ICP Insert, 30 Seat Size, DCN Toolholder, Series SumoCham
Item #: 69505154
Brand: Iscar
Model #: 3203151
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.1810 |
| Maximum Drill Diameter (Decimal Inch) | 1.2160 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.9900 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 30 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.2150 |
| Flute Length (Decimal Inch) | 1.2160 |
| Body Length (Decimal Inch) | 3.6400 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Length (Decimal Inch) | 2.3600 |
