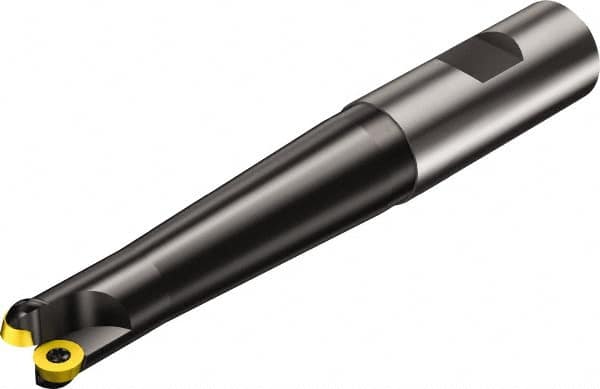

Sandvik Coromant - 3 Inserts, 3/4" Cutter Diam, 0.248" Max Depth of Cut, Indexable High-Feed Face Mill - 5.9488" High, RA300..Mxx Toolholder, R300-1340.. Inserts, Series CoroMill 300
Item #: 69518330
Brand: Sandvik Coromant
Model #: 5739804
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Shank Diameter (Decimal Inch) | 31.7500 |
| Overall Height (Decimal Inch) | 5.9488 |
| Series | CoroMill 300 |
| Cutter Style | RA300..Mxx |
| Number of Cutter Inserts | 3 |
| Insert Compatibility | R300-1340.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 25100 |
| Maximum Body Diameter (Decimal Inch) | 0.9567 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-1340.. |
| Manufacturers Catalog Number | 5739804 |
