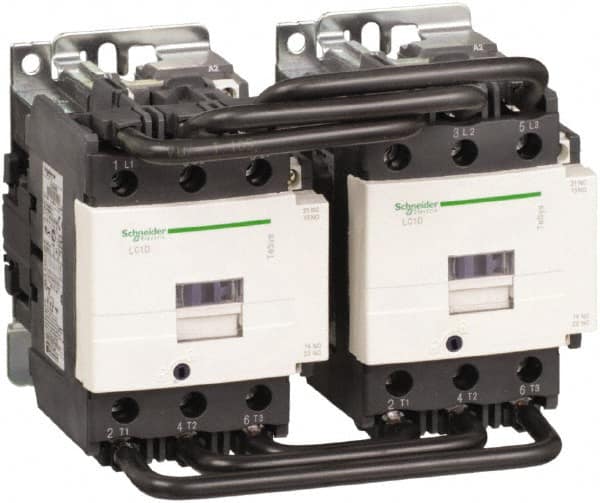

Schneider Electric - 3 Pole, 120 Coil VAC at 50/60 Hz, 80 Amp at 440 VAC, Reversible IEC Contactor - 1 Phase hp: 15 at 230/240 VAC, 7.5 at 115 VAC, 3 Phase hp: 20 at 200/208 VAC, 25 at 230/240 VAC, 60 at 460/480 VAC, 60 at 575/600 VAC
Item #: 69530327
Brand: Schneider Electric
Model #: LC2D80G7
Exact Tooling IR#: 04
Features and Benefits
Reversing contactors are designed with three individual lines that connect to and run voltage through a motor. Each line alternates in a sequence as they reach their voltage peak. They are used to reverse the rotation of a motor.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 120 VAC @ 50/60 Hz |
| Amperage | 80 @ 440 VAC |
| Action | Reversible |
| Horsepower at 1 Phase | 15 @ 230/240 VAC; 7.5 @ 115 VAC |
| Horsepower at 3 Phase | 20 @ 200/208 VAC; 25 @ 230/240 VAC; 60 @ 460/480 VAC; 60 @ 575/600 VAC |
| Auxiliary Contacts | NO/NC |
| Overall Height (mm) | 127 |
| Overall Width (mm) | 182 |
| Overall Depth (mm) | 158 |
| Standards Met | Bureau Veritas; CCC; CSA; CSA C22.2 No. 14; DNV; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GL; GOST; LROS; RINA; UL 508; UL Listed |
