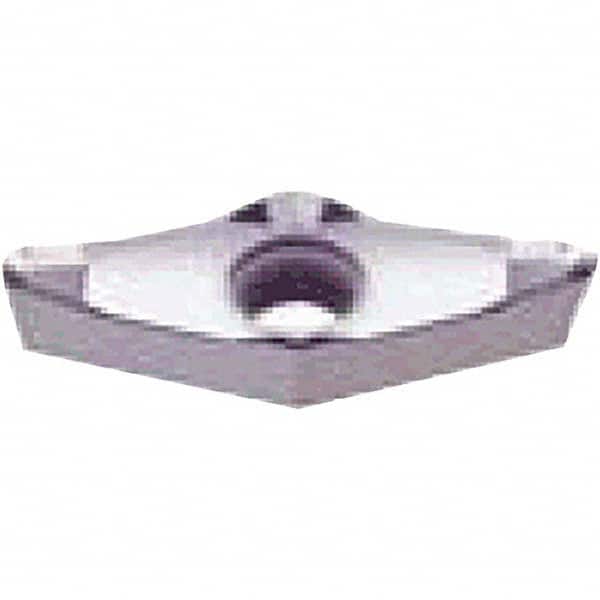

Turning Insert
Item #: 69551752
Brand: Tungaloy
Model #: 6822340
Product Specifications
| Insert Style | VCGT |
| Insert Shape Code | V |
| Insert Size Code | 220530 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Manufacturer Grade | KS05F |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
| Maximum Depth of Cut (mm) | 8.00 |
| Inscribed Circle (mm) | 12.70 |
| Insert Thickness | 5.56 |
| Corner Radius (mm) | 3.00 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCGT |
| Rake | Positive |
| Insert Length (mm) | 22.10 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | VCGT220530-AL |
| Standards | ISO |
| Chip Breaker | AL |
| Coating/Finish | Uncoated |
