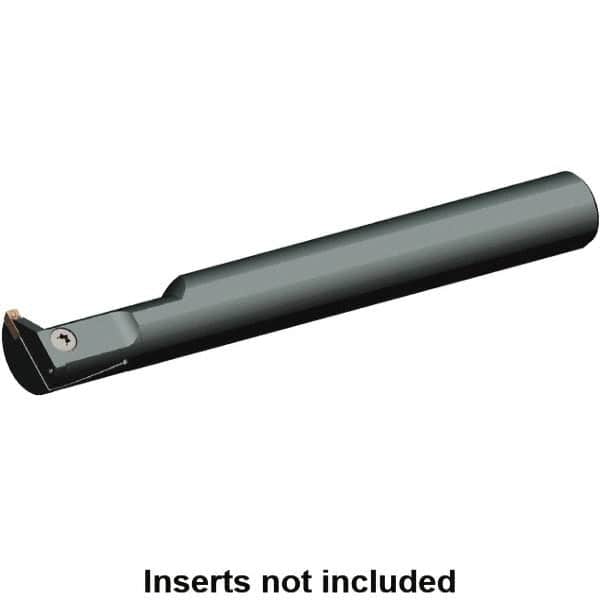

Kennametal - 20mm Min Bore Diam, 150mm OAL, 5/8" Shank Diam, A-EVE Indexable Boring Bar - 1-1/4" Max Bore Depth, EG0300M03P02 Insert, Clamp Holding Method
Item #: 69572014
Brand: Kennametal
Model #: 5954297
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVE |
| Series | Beyond Evolution |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7870 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 31.75 |
| Maximum Bore Depth (Inch) | 1-1/4 |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9060 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | EG0300M03P02 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Neck Diameter (Decimal Inch) | 0.6250 |
| Lead Angle | 0 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9060 |
| Center to Cutting Edge (mm) | 11.06 |
| Center to Cutting Edge (Decimal Inch) | 0.4360 |
| Rake Angle | -4 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1600 |
| Toolholder Material | Steel |
