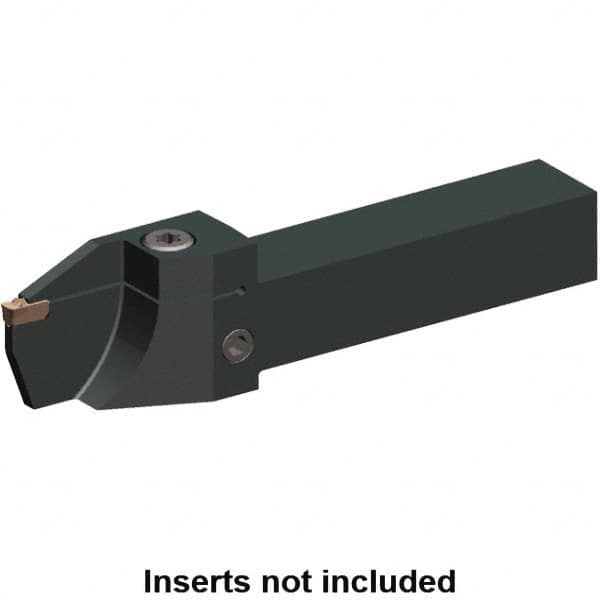

Kennametal - 26mm Max Depth, 4mm to 4mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 69576957
Brand: Kennametal
Model #: 5980766
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Minimum Groove Width (Decimal Inch) | 0.1580 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1580 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (Decimal Inch) | 4.9210 |
| Overall Length (mm) | 125.00 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC-T |
| Insert Compatibility | EG0400M04P04 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7870 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9210 |
| Head Height (mm) | 33.00 |
| Head Height (Decimal Inch) | 1.2990 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8500 |
| Shank Length (Decimal Inch) | 3.0710 |
| Shank Length (mm) | 78.00 |
| Mount Size | 2020 |
| Complete Insert Compatibility | EG0400M04P04 |
| Insert Seat Size | 4.0 |
