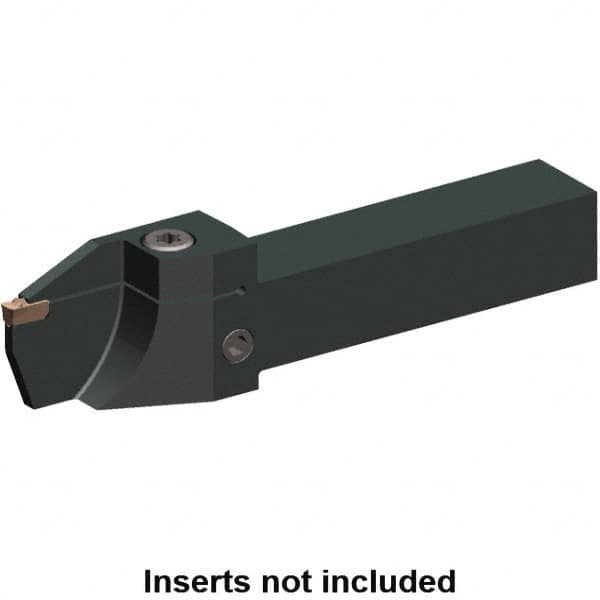

Kennametal - 40mm Max Depth, 5mm to 5mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 69577047
Brand: Kennametal
Model #: 5981025
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC-T |
| Insert Compatibility | EG0500M05P04 |
| Shank Height (mm) | 31.75 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (mm) | 46.25 |
| Head Height (Decimal Inch) | 1.8210 |
| Head Length (mm) | 63.00 |
| Head Length (Decimal Inch) | 2.4800 |
| Shank Length (Decimal Inch) | 3.5200 |
| Shank Length (mm) | 89.40 |
| Mount Size | 2020 |
| Complete Insert Compatibility | EG0500M05P04 |
| Insert Seat Size | 5.0 |
