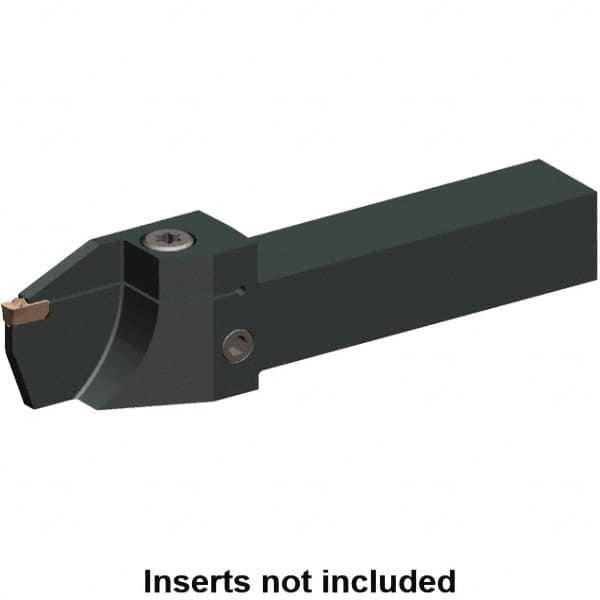

Kennametal - 16mm Max Depth, 2mm to 2mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 69577187
Brand: Kennametal
Model #: 5981011
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC-T |
| Insert Compatibility | EG0200M02P02 |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Head Height (mm) | 26.05 |
| Head Height (Decimal Inch) | 1.0260 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2200 |
| Shank Length (Decimal Inch) | 3.2800 |
| Shank Length (mm) | 83.30 |
| Mount Size | 1212 |
| Complete Insert Compatibility | EG0200M02P02 |
| Insert Seat Size | 2.0 |
