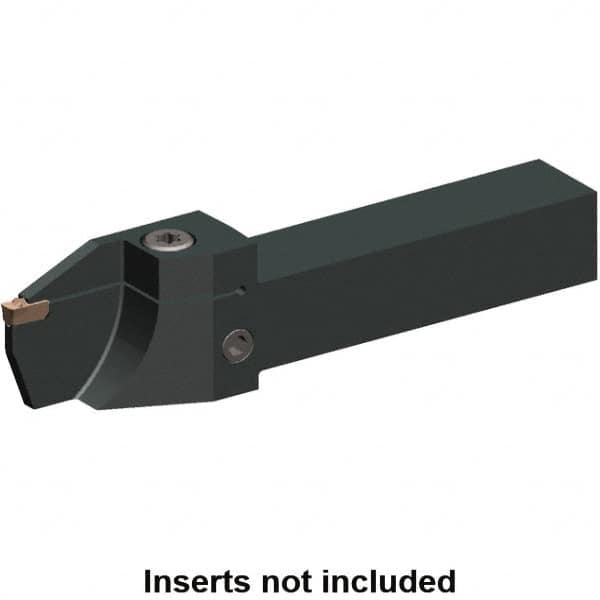

Kennametal - 26mm Max Depth, 3mm to 3mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 69577492
Brand: Kennametal
Model #: 5980807
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (mm) | 3.00 |
| Overall Length (Decimal Inch) | 5.9060 |
| Overall Length (mm) | 150.00 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC-T |
| Insert Compatibility | EG0300M03P02 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9840 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9060 |
| Head Height (mm) | 34.00 |
| Head Height (Decimal Inch) | 1.3390 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8500 |
| Shank Length (Decimal Inch) | 4.0560 |
| Shank Length (mm) | 103.00 |
| Mount Size | 2525 |
| Complete Insert Compatibility | EG0300M03P02 |
| Insert Seat Size | 3.0 |
