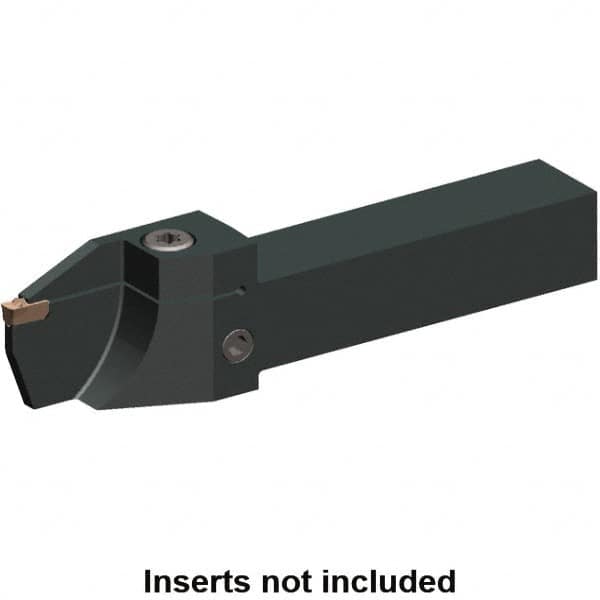

Kennametal - 16mm Max Depth, 4mm to 4mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 69577559
Brand: Kennametal
Model #: 5980779
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.1580 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1580 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (Decimal Inch) | 4.9210 |
| Overall Length (mm) | 125.00 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC-T |
| Insert Compatibility | EG0400M04P04 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6300 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9210 |
| Head Height (mm) | 23.50 |
| Head Height (Decimal Inch) | 0.9250 |
| Head Length (mm) | 36.00 |
| Head Length (Decimal Inch) | 1.4170 |
| Shank Length (Decimal Inch) | 3.5040 |
| Shank Length (mm) | 89.00 |
| Mount Size | 1616 |
| Complete Insert Compatibility | EG0400M04P04 |
| Insert Seat Size | 4.0 |
