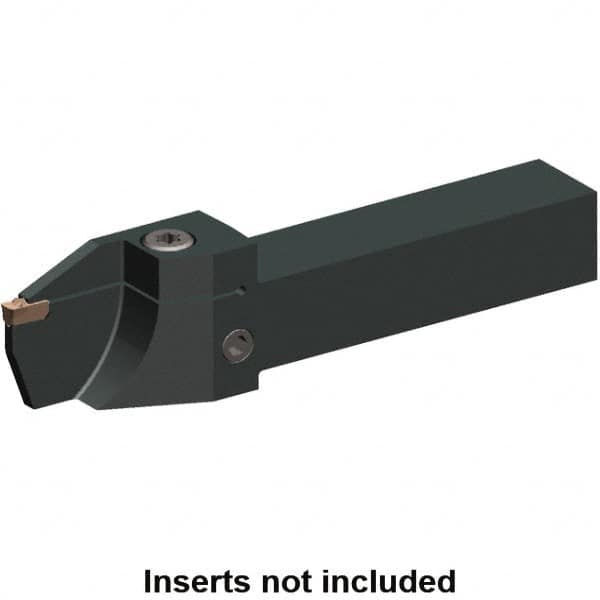

Kennametal - 16mm Max Depth, 2mm to 2mm Width, External Left Hand Indexable Grooving/Cutoff Toolholder
Item #: 69577567
Brand: Kennametal
Model #: 5980780
Product Specifications
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.0790 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (Decimal Inch) | 4.9210 |
| Overall Length (mm) | 125.00 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC-T |
| Insert Compatibility | EG0200M02P02 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7870 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9210 |
| Head Height (mm) | 27.00 |
| Head Height (Decimal Inch) | 1.0630 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2200 |
| Shank Length (Decimal Inch) | 3.7010 |
| Shank Length (mm) | 94.00 |
| Mount Size | 2020 |
| Complete Insert Compatibility | EG0200M02P02 |
| Insert Seat Size | 2.0 |
