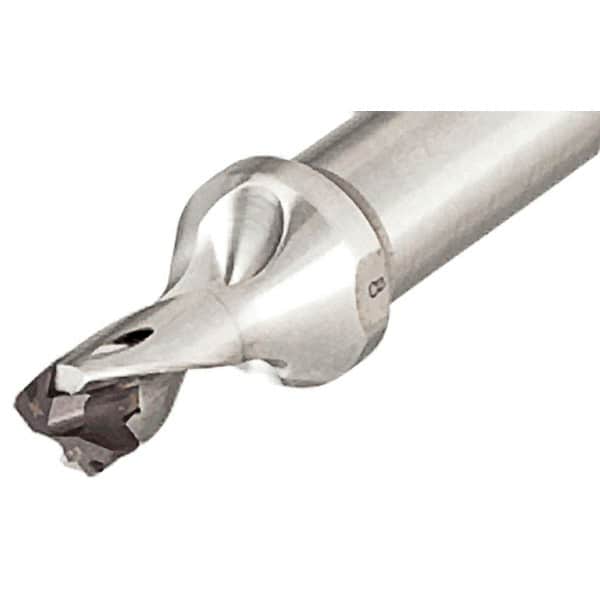

Iscar - 27 to 27.9mm Diam, 1.5xD, 45.9mm Max Drill Depth, 32mm Shank Diam, 143.1mm OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICM, ICP Insert, 27 Seat Size, DCN Toolholder, Series SumoCham
Item #: 69582161
Brand: Iscar
Model #: 3203121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 27.00 |
| Maximum Drill Diameter (mm) | 27.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 45.90 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | FCP; HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 27 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (mm) | 4.91 |
| Flute Length (mm) | 45.90 |
| Body Length (mm) | 83.10 |
| Overall Length (mm) | 143.10 |
| Shank Length (mm) | 60.00 |
