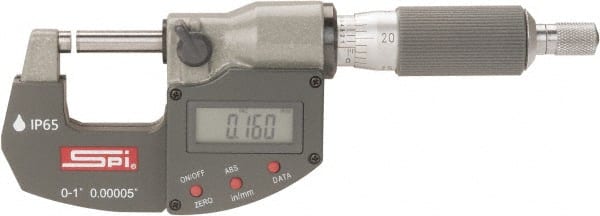

SPI - 0 to 1" Range, 0.00005" Resolution, Double Ratchet IP65 Electronic Outside Micrometer - 0.0001" Accuracy, Ratchet-Friction Thimble, Carbide Face, CR2032 Battery, Includes NIST Traceable Certification of Inspection
Item #: 69602019
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
Ratchet friction thimbles are easy-to-reach and provide audible and constant measuring pressure on the spindle while measuring. They are considered to be a combination of friction and ratchet stop thimbles.
| Product Specifications | |
|---|---|
| Type | Double Ratchet |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Minimum Measurement (mm) | 0.00 |
| Maximum Measurement (mm) | 25.00 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Thimble Type | Ratchet-Friction |
| Traceability Certification Included | NIST |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Accuracy Plus/Minus (mm) | 0.0020 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000100 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | Yes |
| Spindle Style | Rotating |
| Data Output | Micro USB |
| Data Output | Yes |
| Measuring Face Material | Carbide |
| Battery Type | CR2032 |
