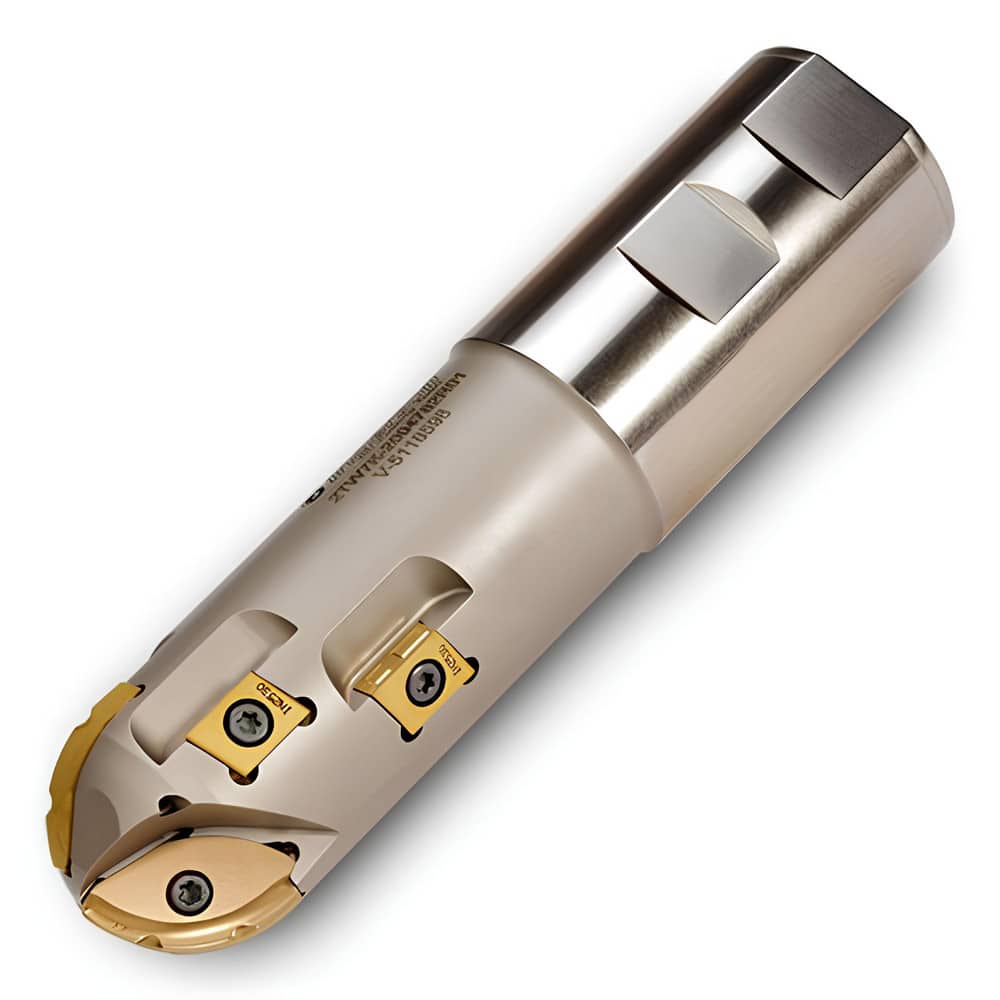

Indexable Ball Nose End Mills; Milling Diameter: 1.5000 in; Maximum Depth Of Cut: 1.7000 in; Shank Diameter: 1.5000 in; Shank Type: Weldon Flat; Compatible Insert Style: NCEU; Compatible Insert Size Code: 3806; Toolholder Style: 2TW7K; Series: 2TW7K; Over
Item #: 69610301
Brand: Ingersoll Cutting Tools
Model #: 2910435
Product Specifications
| Milling Diameter | 1.5000 in |
| Maximum Depth Of Cut | 1.7000 in |
| Shank Diameter | 1.5000 in |
| Shank Type | Weldon Flat |
| Compatible Insert Style | NCEU |
| Compatible Insert Size Code | 3806 |
| Toolholder Style | 2TW7K |
| Series | 2TW7K |
| Overall Length (mm) | 1.00 |
| Overall Length (Decimal Inch) | 1.00 |
| Overall Length (Inch) | 1.00 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | No |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 4.1700 in |
