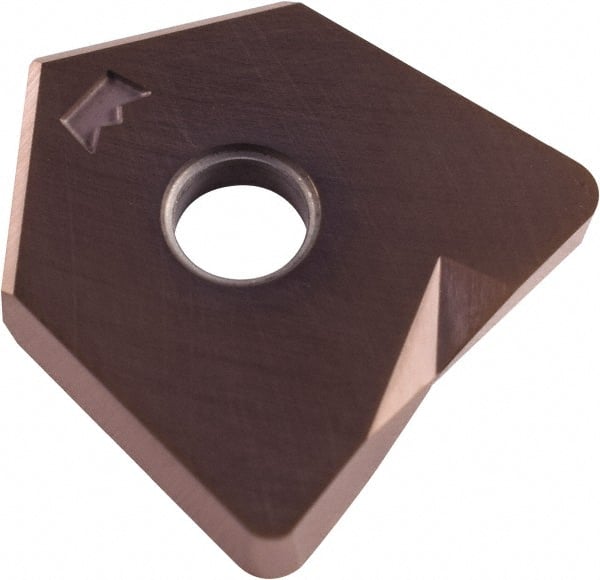

Millstar - BD-N16 None Grade CM043 Carbide Milling Insert - HSN Finish, 3.05mm Thick, 16mm Inscribed Circle, 1.3mm Corner Radius
Item #: 69639037
Brand: Millstar
Model #: BD16N13HSN
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BD-N |
| Insert Size | 16 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C4/C5/C6 |
| Manufacturer's Grade | CM043 |
| Coating | HSN |
| Width (mm) | 16.00 |
| Length (mm) | 11.55 |
| Inscribed Circle (mm) | 16.00 |
| Thickness (mm) | 3.05 |
| Corner Radius (mm) | 1.30 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | CBCYF; CYF |
