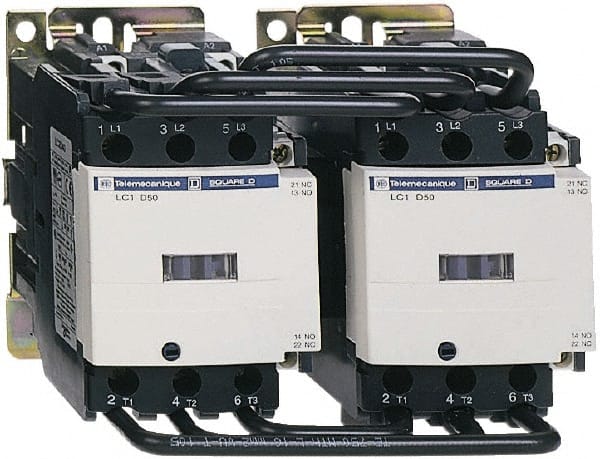

Schneider Electric - 3 Pole, 120 Coil VAC at 50/60 Hz, 50 Amp, Reversible IEC Contactor - Bureau Veritas, CCC, CSA, CSA C22.2 No. 14, DNV, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GL, GOST, LROS, RINA, UL 508, UL Listed
Item #: 69662815
Brand: Schneider Electric
Model #: LC2D50G7
Exact Tooling IR#: 04
Features and Benefits
Reversing contactors are designed with three individual lines that connect to and run voltage through a motor. Each line alternates in a sequence as they reach their voltage peak. They are used to reverse the rotation of a motor.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 120 VAC @ 50/60 Hz |
| Amperage | 50 |
| Action | Reversible |
| Auxiliary Contacts | NO/NC |
| Overall Height (mm) | 132 |
| Overall Width (mm) | 165 |
| Overall Depth (mm) | 142 |
| Standards Met | Bureau Veritas; CCC; CSA; CSA C22.2 No. 14; DNV; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GL; GOST; LROS; RINA; UL 508; UL Listed |
