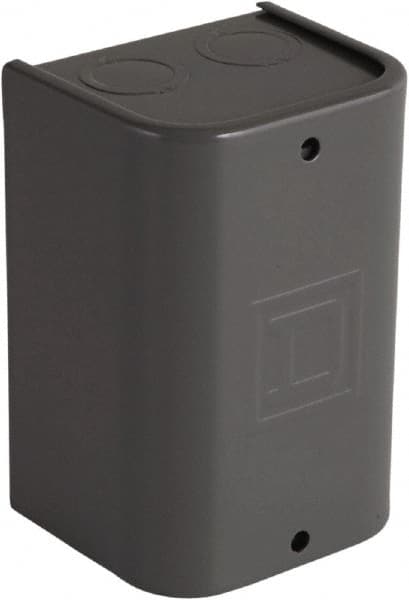

Square D - Steel Power Relay Enclosure Screw Cover - NEMA 1, 92mm Wide x 134.11 mm High x 84mm Deep
Item #: 69674216
Brand: Square D
Model #: 9991UE1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Power Relay Enclosure |
| Cover Type | Screw Cover |
| Enclosure Material | Steel |
| NEMA Rating | 1 |
| Overall Width (Decimal Inch) | 3.6300 |
| Overall Height (Decimal Inch) | 5.2800 |
| Overall Depth (Decimal Inch) | 3.3100 |
| Cover Color | Gray |
| For Use With | 12-pole AC Relay; 4-pole AC Latching Relay; 4-pole AC Timing Relay; 4-pole or 8-pole AC or DC Relay; 8501C Power Relays |
| Includes | Knockouts; Self-tapping Mounting Screws |
| Standards Met | CE Marked; CSA Certified File Number 209683 Class 321104; UL Listed File Number E78351 CCN NLDX |
| Overall Width (mm) | 92 |
| Overall Height (mm) | 134.11 |
| Overall Depth (mm) | 84 |
