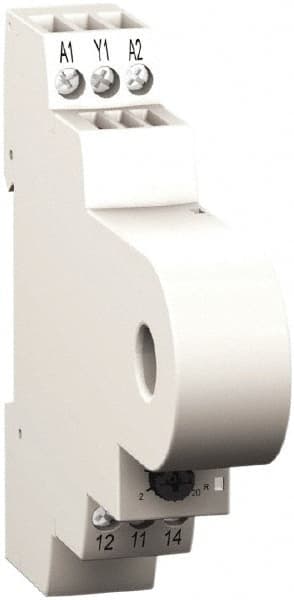

Schneider Electric - 24-240 VAC/DC Control Relay - 2 to 20 Amps
Item #: 69674281
Brand: Schneider Electric
Model #: RM17JC00MW
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Coil Voltage | 24-240 VAC/DC |
| Control Type | Over Current |
| Mounting Type | DIN Rail Mount |
| Terminal Type | Screw |
| Maximum Sensed Amperage | 20 |
| Minimum Sensed Amperage | 2 |
| Ingress Protection Rating | IP20 (Terminals); IP30 (Casing) |
| Overall Width (mm) | 17-1/2 |
| Standards Met | CSA; C-Tick; EN/IEC 60255-6; GL; GOST; IEC 60068-2-30; IEC 60068-2-6; IEC 60255-21-1; UL; Utilization Category AC-12; Utilization Category AC-13; Utilization Category AC-14; Utilization Category AC-15; Utilization Category DC-12; Utilization Category DC-1 |
