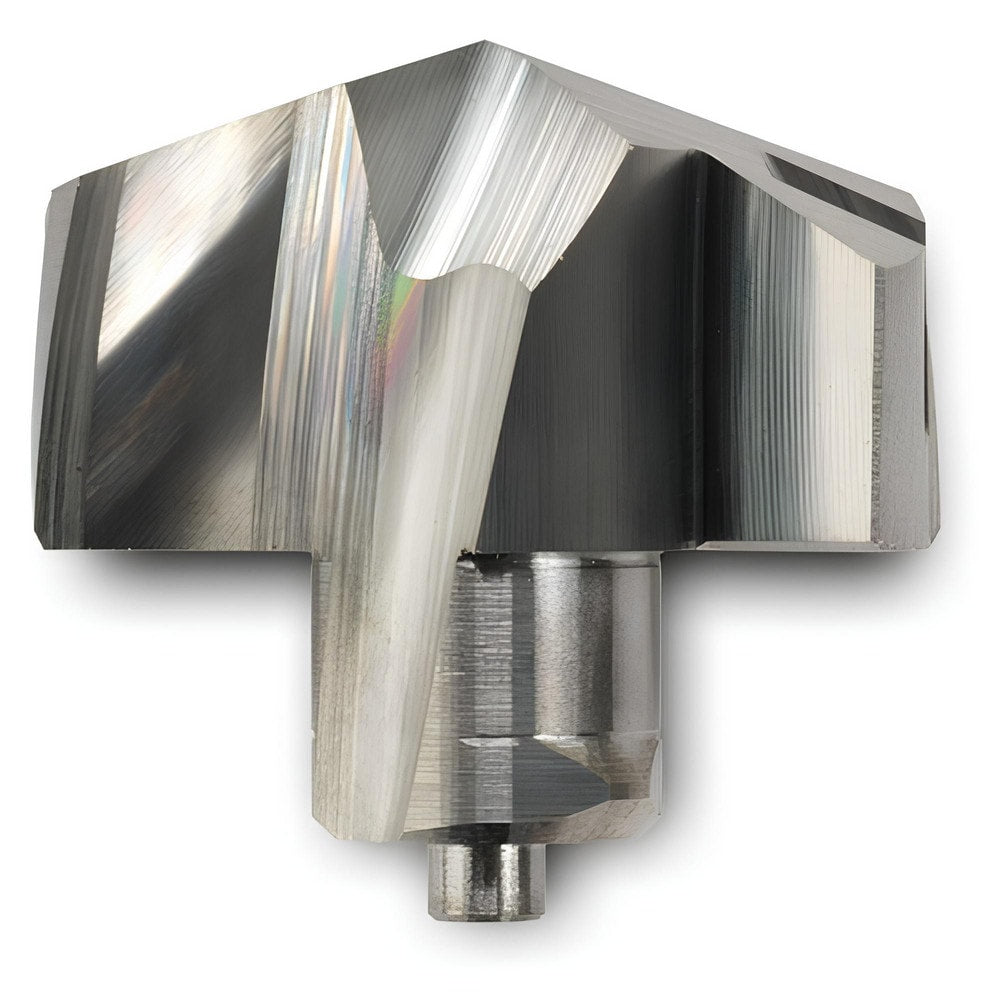

Brand: Ingersoll Cutting Tools / Part #: 6129361
Item #: 95343612
Brand: Ingersoll Cutting Tools
Model #: 6129361
Product Specifications
| Maximum Drill Diameter (mm) | 11.00 |
| Point Angle | 140.00 |
| Diameter (mm) | 11.0000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN05S |
| Cutting Direction | Right Hand |
| Series | TNA |
| Coating Process | Uncoated |
| Insert Geometry | N |
| Insert Seat Size | 11 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Height (mm) | 6.6000 |
| Head Length (mm) | 6.60 |
| Cutting Diameter (mm) | 11.00 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Twist |
| ISO Number | TNA1100R01 IN05S |
| Coolant Through | Yes |
| Flute Length (mm) | 4.93 |
| Point Type | Spiral Point |
| Overall Length/Projection (mm) | 6.60 |
| Spiral Type | Regular |
| Style | TNA |
| Coating Classification | Uncoated |
| Applications | Drilling |
| Coating/Finish | Uncoated |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
