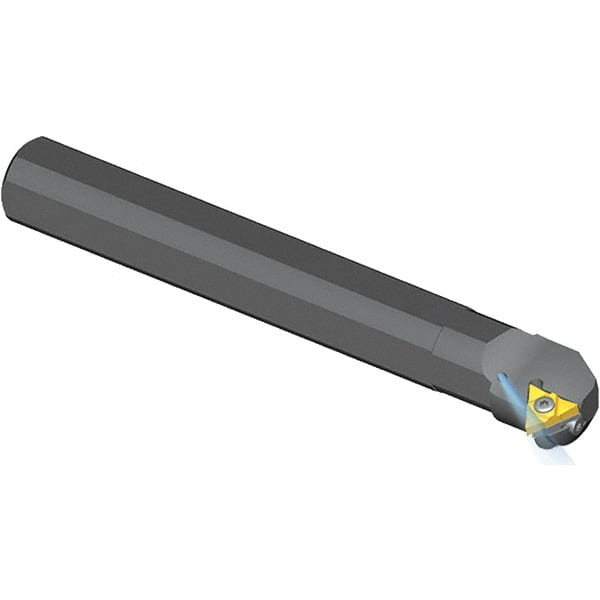

Vargus - Internal Thread, Left Hand Cut, 1-1/4" Shank Width x 1.12" Shank Height Indexable Threading Toolholder - 10" OAL, 4UI Insert Compatibility, AVRC Toolholder, Series U Style
Item #: 69691434
Brand: Vargus
Model #: 66219
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.1200 |
| Overall Length (Decimal Inch) | 10.0000 |
| Insert Compatibility | 4UI |
| Series | U Style |
| Toolholder Style | AVRC |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 41.5290 |
| Neck Diameter (Decimal Inch) | 1.2500 |
| Minimum Bore Diameter (Decimal Inch) | 1.6500 |
