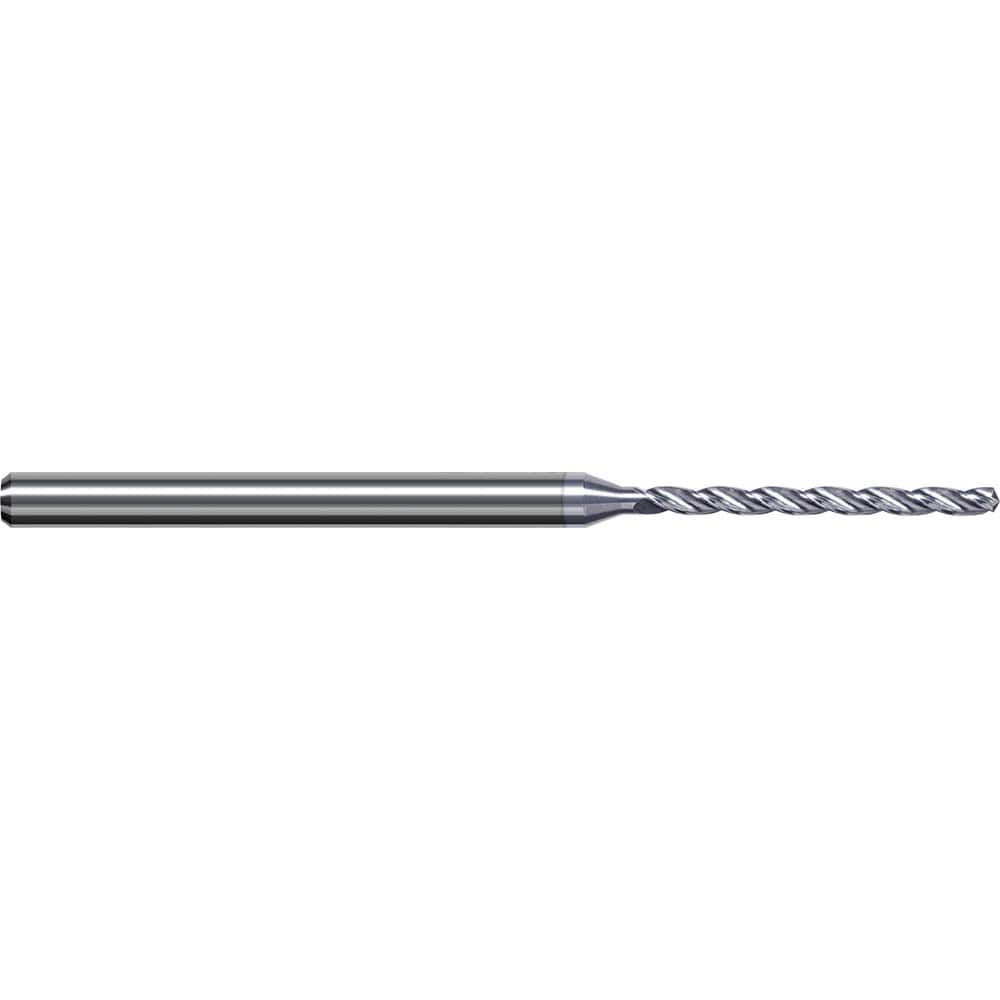

Harvey Tool - #77, 130° Point, Solid Carbide Micro Drill Bit
Item #: 69693216
Brand: Harvey Tool
Model #: DQW0180-C8
Product Specifications
| Drill Bit Size (Wire) | #77 |
| Drill Bit Size (Decimal Inch) | 0.0180 |
| Shank Diameter (mm) | 3 |
| Drill Point Angle | 130 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiB2 |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 50 |
| Flute Length (mm) | 6.20 |
| Flute Length (Decimal Inch) | 0.244 |
| Flute Length (Inch) | 0.244 |
| Flute Type | Spiral |
| Drill Bit Diameter Tolerance (mm) | h6 |
| Series/List | Miniature High Performance Drills - Aluminum Alloys |
