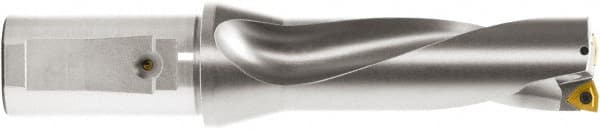

Komet - 28mm Max Drill Depth, 2xD, 14mm Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 69754117
Brand: Komet
Model #: V3021402
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V30 |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Depth (mm) | 28.00 |
| Maximum Drill Depth (Decimal Inch) | 1.1024 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Left Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.00 |
| Overall Length/Projection (mm) | 63.00 |
| Overall Length/Projection (Decimal Inch) | 2.4803 |
| Insert Compatibility | WOEX 030204 |
| Body Length (Decimal Inch) | 2.4803 |
| Body Length (mm) | 63.00 |
| Series | KUB Trigon |
