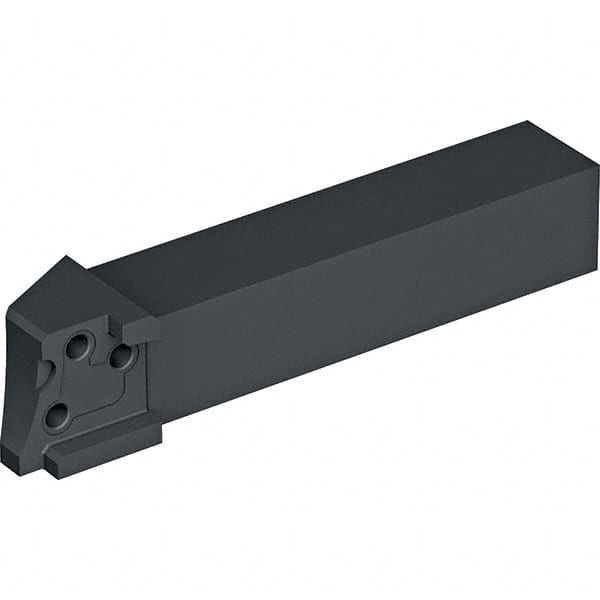

Walter - 45mm Max Depth, 0.6mm to 8mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 69767291
Brand: Walter
Model #: 5009171
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 45.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7717 |
| Minimum Groove Width (Decimal Inch) | 0.0236 |
| Minimum Groove Width (mm) | 0.60 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (mm) | 8.00 |
| Overall Length (Decimal Inch) | 8.1496 |
| Overall Length (mm) | 207.00 |
| Toolholder Style | MSS-E |
| Insert Compatibility | FX3.1..; FX4.1..; FX5.1..; FX6.5..; GX16-2..; GX16-3..; GX16-4..; GX24-3..; GX24-4..; LX.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Full Radius Insert | Yes |
| Complete Insert Compatibility | FX3.1-E310N015-CE4; FX3.1-E310N015-CK8; FX3.1-E310N020-CE6; FX3.1-E310N040-CD3; FX3.1-E310N040-CE6; FX3.1-E310R/L5-CE6; FX3.1-E310R/L6-CE4; FX4.1-E410N015-CK8; FX4.1-E410N020-CD3; FX4.1-E410N020-CE4; FX4.1-E410N020-CE6; FX4.1-E410N050-CD3; FX4.1-E410N050- |
