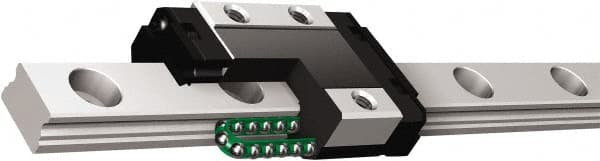

THK - 30.8mm Block L x 20mm W x 8.5mm H, 10mm Transverse Hole Spcg, 15mm Lateral Hole Spcg, 2-Row Mini SRS7GM Assembly - M3x2.8 Block Hole, 115mm Rail L x 9mm W x 5.5mm H, 10mm Assembly H, 0mm Overhang
Item #: 69855534
Brand: THK
Model #: SRS9XGMUU+115LM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Row Miniature Type SRS7GM |
| Block Length (mm) | 30.80 |
| Block Width (mm) | 20.00 |
| Block Height (mm) | 8.50 |
| Block Transverse Hole Spacing (mm) | 10.00 |
| Block Lateral Hole Spacing (mm) | 15.00 |
| Block Hole Size | M3x2.8 |
| Rail Length (mm) | 115.00 |
| Rail Width (mm) | 9.000 |
| Rail Height (mm) | 5.500 |
| Assembly Height (mm) | 10.00 |
| Block Overhang (mm) | 0.00 |
| Rail Bolt Spacing (mm) | 20.00 |
| Static Load Rating (kN) | 3.060 |
| Dynamic Load Capacity (kN) | 2.220 |
