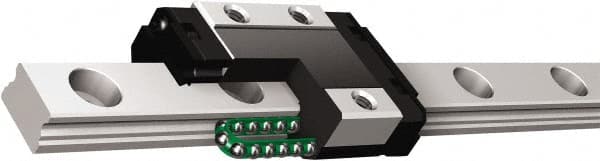

THK - 23.4mm Block L x 17mm W x 6.7mm H, 8mm Transverse Hole Spcg, 12mm Lateral Hole Spcg, 2-Row Mini SRS7GM Assembly - M2x2.3 Block Hole, 130mm Rail L x 7mm W x 4.7mm H, 8mm Assembly H, 0mm Overhang
Item #: 69855559
Brand: THK
Model #: 2SRS7GMUU+130LM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Row Miniature Type SRS7GM |
| Block Length (mm) | 23.40 |
| Block Width (mm) | 17.00 |
| Block Height (mm) | 6.70 |
| Block Transverse Hole Spacing (mm) | 8.00 |
| Block Lateral Hole Spacing (mm) | 12.00 |
| Block Hole Size | M2x2.3 |
| Rail Length (mm) | 130.00 |
| Rail Width (mm) | 7.000 |
| Rail Height (mm) | 4.700 |
| Assembly Height (mm) | 8.00 |
| Block Overhang (mm) | 0.00 |
| Rail Bolt Spacing (mm) | 15.00 |
| Static Load Rating (kN) | 1.540 |
| Dynamic Load Capacity (kN) | 1.160 |
