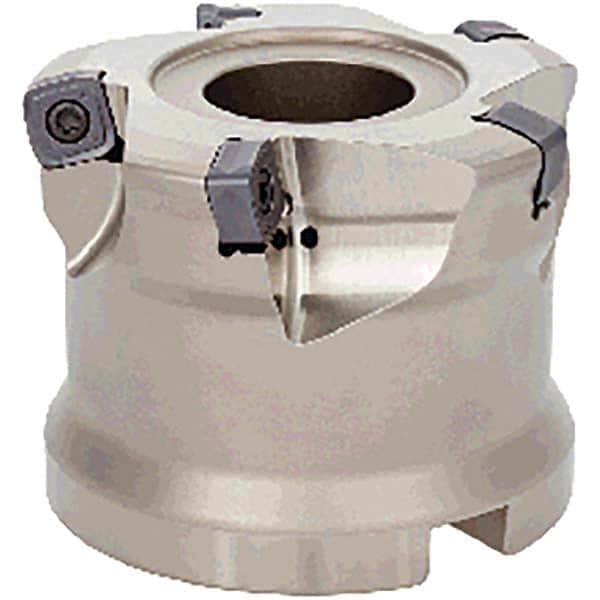

2″ Cut Diam, 3/4″ Arbor Hole, Indexable High-Feed Face Mill
Item #: 69869915
Brand: Tungaloy
Model #: 6990522
Product Specifications
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter | 1.362 in |
| Maximum Cutting Diameter | 2 in |
| Maximum Depth Of Cut | 0.079 in |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | SQMU-MJ |
| Series | TXQ |
| Cutter Style | TXQ |
| Number of Cutter Inserts | 4 |
| Through Coolant | Normal Pressure |
| Keyway Width | 0.315 in |
| Overall Height | 1.969 in |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ISO |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
