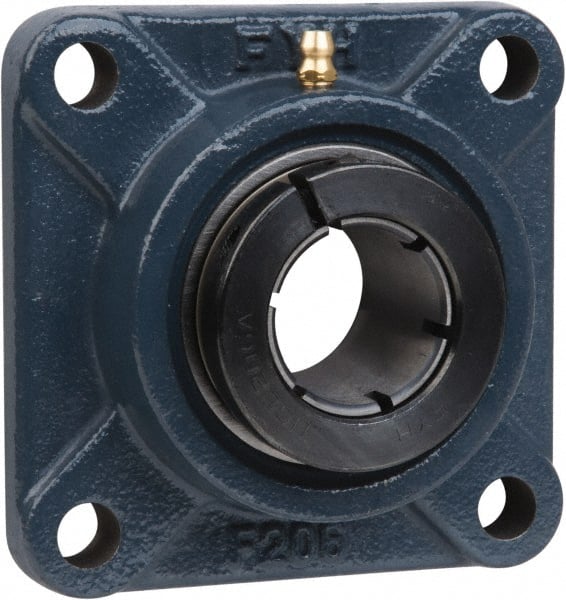

Value Collection - 3/4" ID, 3-3/8" OAL x 1-3/8" OAH 4-Bolt Flange - 1,494 Lb Static Cap, 2,877 Lb Dyn Cap, 2-33/64" Btw Mnt Hole Ctrs, 19/32" Base-to-Ctr Ht, Cast Iron
Item #: 69962660
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Inside Diameter (Inch) | 3/4 |
| Width (Inch) | 3-3/8 |
| Width (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Height (Inch) | 1-3/8 |
| Overall Height (Decimal Inch) | 1.3750 |
| Static Load Capacity (Pounds) | 1494.00 |
| Dynamic Load Capacity (Pounds) | 2877 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.5156 |
| Distance Between Mounting Hole Centers (Inch) | 2-33/64 |
| Material | Cast Iron housing with Chrome Carbon Steel Bearings |
| Distance Between Base And Center (Decimal Inch) | 0.5938 |
| Distance Between Base And Center (Inch) | 19/32 |
| Lock Type | Concentric |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Decimal Inch) | 0.3750 |
