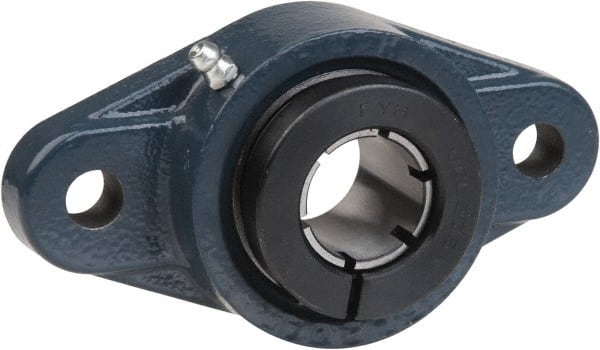

Value Collection - 1" ID, 5-1/8" OAL x 1-1/2" OAH 2-Bolt Flange - 1,764 Lb Static Cap, 3,147 Lb Dyn Cap, 3-57/64" Btw Mnt Hole Ctrs, 5/8" Base-to-Ctr Ht, Cast Iron
Item #: 69962769
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Inside Diameter (Inch) | 1 |
| Width (Inch) | 2-11/16 |
| Width (Decimal Inch) | 2.6875 |
| Overall Length (Inch) | 5-1/8 |
| Overall Length (Decimal Inch) | 5.1250 |
| Overall Height (Inch) | 1-1/2 |
| Overall Height (Decimal Inch) | 1.5000 |
| Static Load Capacity (Pounds) | 1764.00 |
| Dynamic Load Capacity (Pounds) | 3147 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.8906 |
| Distance Between Mounting Hole Centers (Inch) | 3-57/64 |
| Material | Cast Iron housing with Chrome Carbon Steel Bearings |
| Distance Between Base And Center (Decimal Inch) | 0.6250 |
| Distance Between Base And Center (Inch) | 5/8 |
| Lock Type | Concentric |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Decimal Inch) | 0.3750 |
