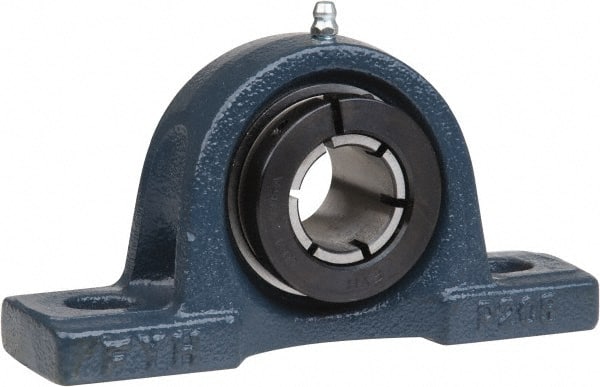

Value Collection - 3/4" ID, 5" OAL x 2-17/32" OAH Pillow Block - 1,494 Lb Static Cap, 2,877 Lb Dyn Cap, 3-3/4" Btw Mnt Hole Ctrs, 1-5/16" Base-to-Ctr Ht, Cast Iron
Item #: 69972792
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Pillow Block |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Inside Diameter (Inch) | 3/4 |
| Width (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Height (Inch) | 2-17/32 |
| Overall Height (Decimal Inch) | 2.5313 |
| Static Load Capacity (Pounds) | 1494.00 |
| Dynamic Load Capacity (Pounds) | 2877 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.7500 |
| Distance Between Mounting Hole Centers (Inch) | 3-3/4 |
| Material | Cast Iron housing with Chrome Carbon Steel Bearings |
| Distance Between Base And Center (Decimal Inch) | 1.3125 |
| Distance Between Base And Center (Inch) | 1-5/16 |
| Lock Type | Concentric |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Decimal Inch) | 0.3750 |
