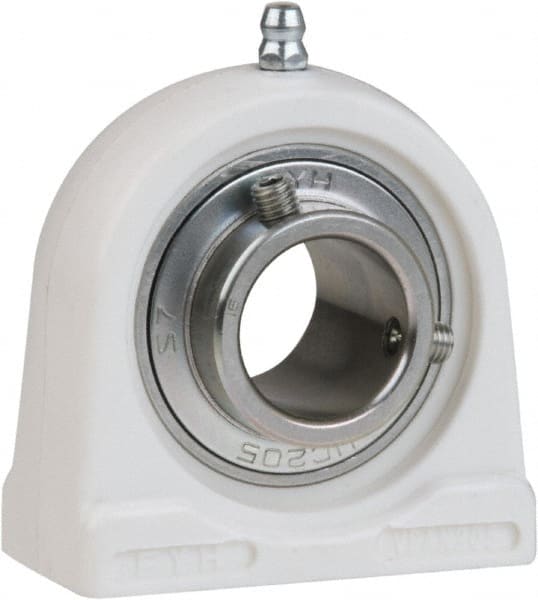

Value Collection - 1-7/16" ID, 4-11/32" OAL x 3-3/4" OAH Tapped Base - 3,462 Lb Static Cap, 5,777 Lb Dyn Cap, 3-1/4" Btw Mnt Hole Ctrs, 1-7/8" Base-to-Ctr Ht, Thermoplastic
Item #: 69972958
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Tapped Base |
| Inside Diameter (Decimal Inch) | 1.4375 |
| Inside Diameter (Inch) | 1-7/16 |
| Width (Decimal Inch) | 1.8750 |
| Overall Length (Inch) | 4-11/32 |
| Overall Length (Decimal Inch) | 4.3438 |
| Overall Height (Inch) | 3-3/4 |
| Overall Height (Decimal Inch) | 3.7500 |
| Static Load Capacity (Pounds) | 3462.00 |
| Dynamic Load Capacity (Pounds) | 5777 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.2500 |
| Distance Between Mounting Hole Centers (Inch) | 3-1/4 |
| Material | Thermoplastic Housing with Zinc Chromate Plated Bearing Insert |
| Distance Between Base And Center (Decimal Inch) | 1.8750 |
| Distance Between Base And Center (Inch) | 1-7/8 |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 1/2 |
| Bolt Size (Decimal Inch) | 0.5000 |
