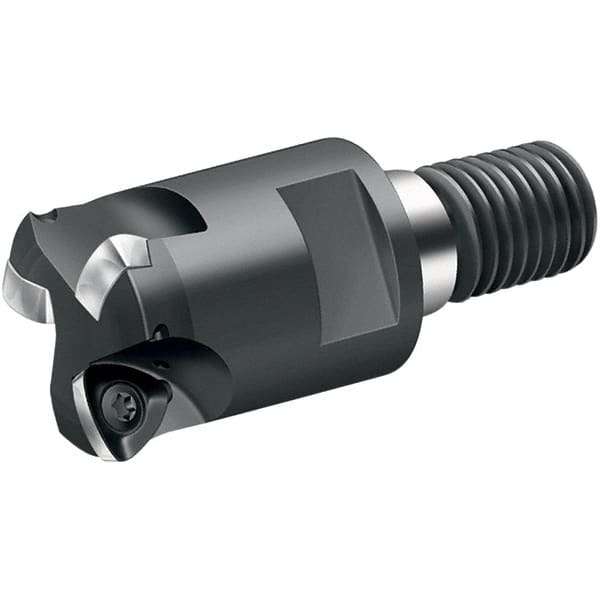

Walter - 15° Lead Angle, 1-1/4" Max Cut Diam, 0.699" Min Cut Diam, 0.059" Max Depth of Cut, Indexable Chamfer & Angle End Mill - 3 Inserts, P 2633.-R14 Insert Style, 69mm OAL, Through Coolant, Threaded Shank
Item #: 69973782
Brand: Walter
Model #: 5050731
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Shank Type | Modular Connection |
| Number of Cutter Inserts | 3 |
| Insert Style | P 2633.-R14 |
| Toolholder Style | F2330 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6990 |
| Through Coolant | Yes |
| Head Length (Decimal Inch) | 1.5750 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 69.00 |
| Overall Length (Decimal Inch) | 2.7170 |
| Series | ScrewFit |
| Lead Angle | 15 |
