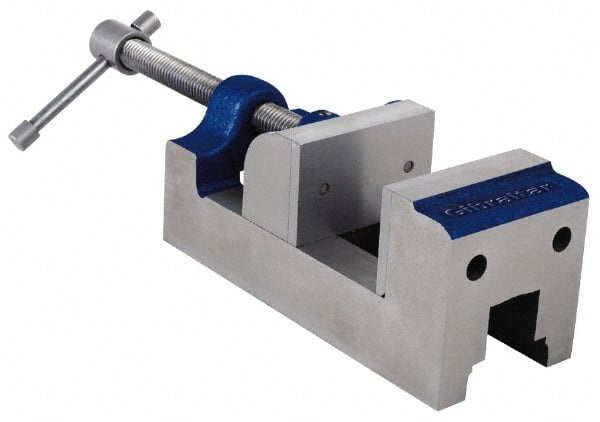

Gibraltar - 4" Jaw Opening Capacity x 1-3/4" Throat Depth, Horizontal Drill Press Vise - 4" Wide Jaw, Stationary Base, Standard Speed, 10-3/4" OAL, Cast Iron
Item #: 70037940
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 4 |
| Jaw Opening Capacity (Inch) | 4 |
| Jaw Opening Capacity (Decimal Inch) | 4.0000 |
| Throat Depth (Inch) | 1-3/4 |
| Throat Depth (Decimal Inch) | 1.7500 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 10-3/4 |
| Overall Length (Decimal Inch) | 10.7480 |
| Overall Height (Inch) | 3.1000 |
| Overall Height (Decimal Inch) | 3.1102 |
| Vise Material | Cast Iron |
