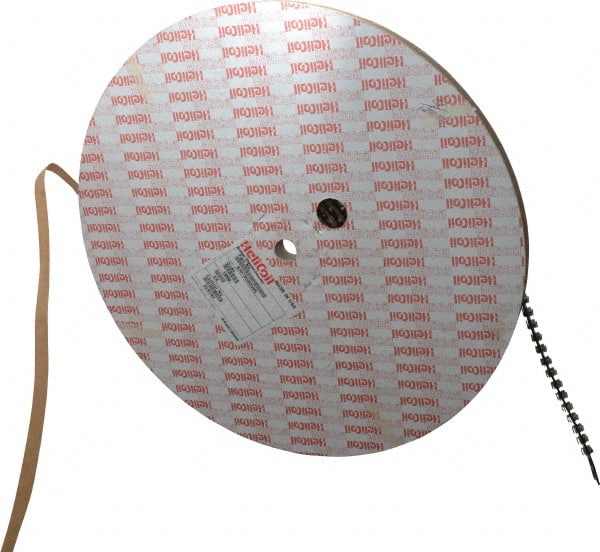

Heli-Coil - 1/4-20 UNC, 3/8" OAL, Free Running Helical Insert - 5-3/4 Free Coils, Tanged, 304 Stainless Steel, 1-1/2D Insert Length
Item #: 70060595
Brand: Heli-Coil
Model #: 1185-4CN 375S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | 1/4-20 |
| Overall Insert Length (Decimal Inch) | 0.3750 |
| Overall Insert Length (Inch) | 3/8 |
| Tang | Tanged |
| Thread Standard | UNC |
| Material | Stainless Steel |
| Number of Free Coils | 5-3/4 |
| Length to Diameter Ratio | 1-1/2D |
| Material Grade | 304 |
